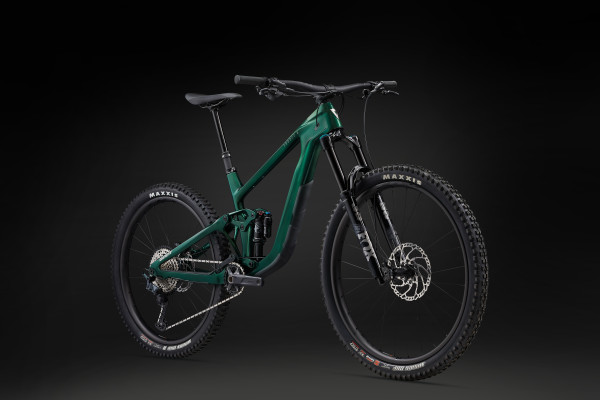

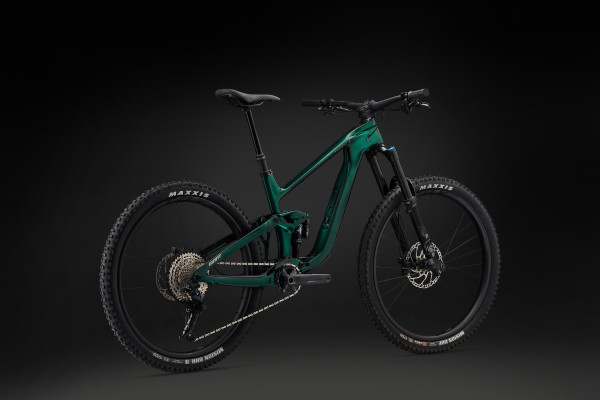

Trance X Advanced SX

High-performance grade raw carbon is used to produce this custom frame material in our own composite factory. The mainframe and rear swingarm are handcrafted with monocoque construction for optimized stiffness-to-weight and an ultra-responsive ride quality.

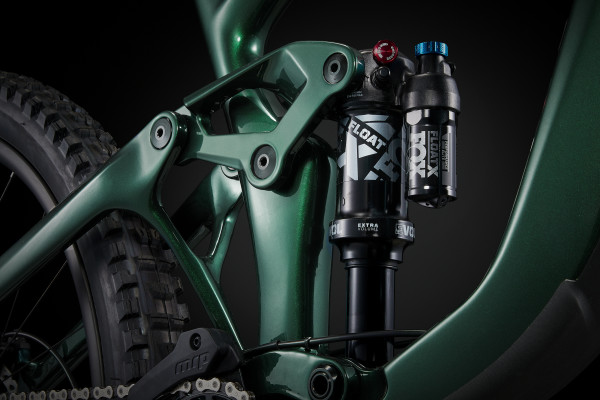

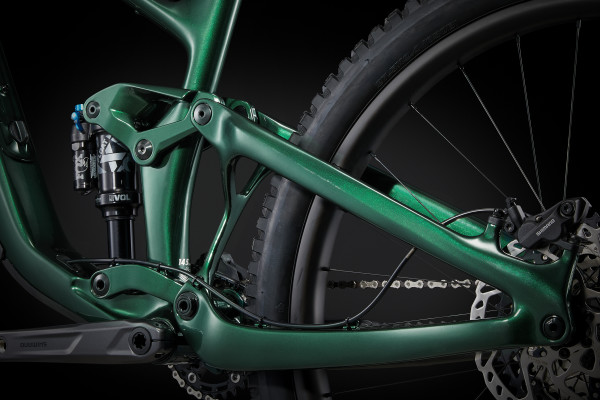

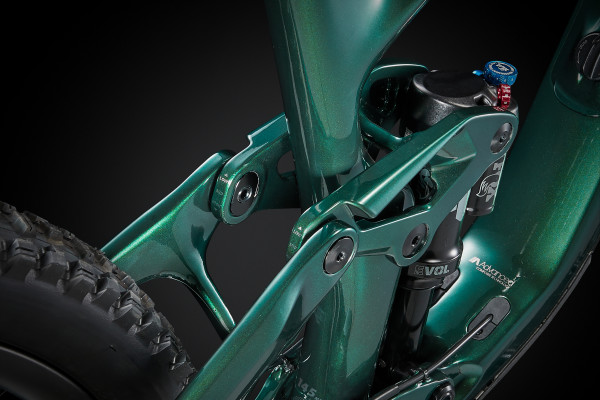

Four strategically positioned pivot points and two linkages all work together to create a single floating pivot for the most active, efficient and independent suspension system.

A high-pressure molding process is used to produce a complex shaped carbon-fiber upper rocker arm that is lighter, stiffer and stronger than an aluminum version.

Flip chip adjustability lets you switch between three settings depending on the terrain you are riding. You can select a 63.2, 63.5 or 63.9-degree head angle and corresponding 75.6, 75.9 or 76.3-degree seat tube angle, resulting in a 30, 26 or 21mm bottom bracket drop (size medium).

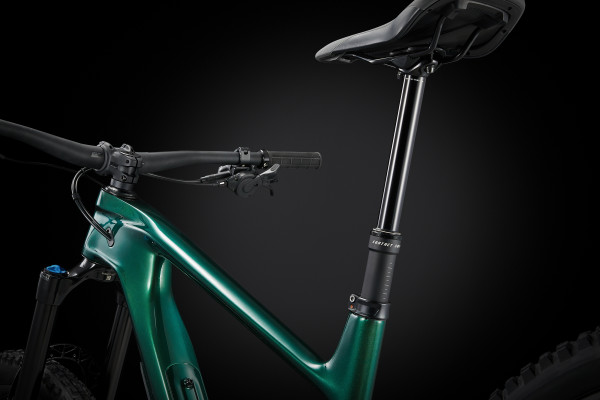

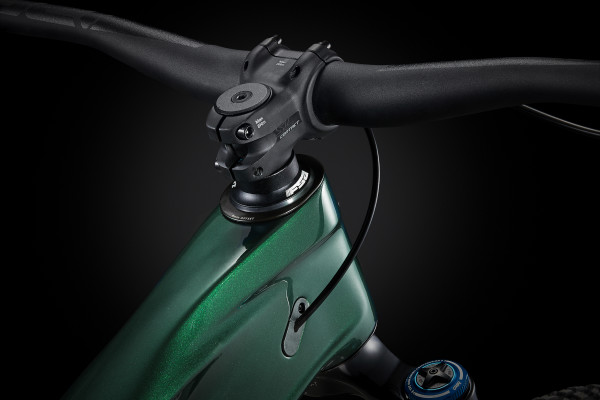

Three-position flip chip at the headset lets riders dial in cockpit dimensions and geometry. This modular system helps fine tune the bike’s handling and rider position using two positioning chips that can be removed and swapped to achieve a Short (-5mm), Mid (0mm) or Long (+5mm) reach.

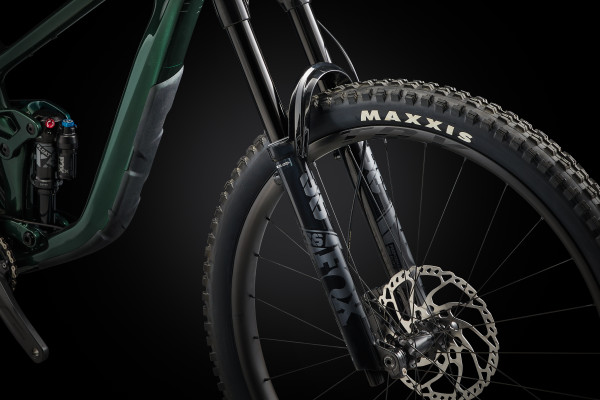

A 29-inch front wheel provides speed, stability and front-end control on rough, technical trails. A 27.5-inch rear wheel adds agility and maneuverability to help riders rail corners, pop over features and show off their style.

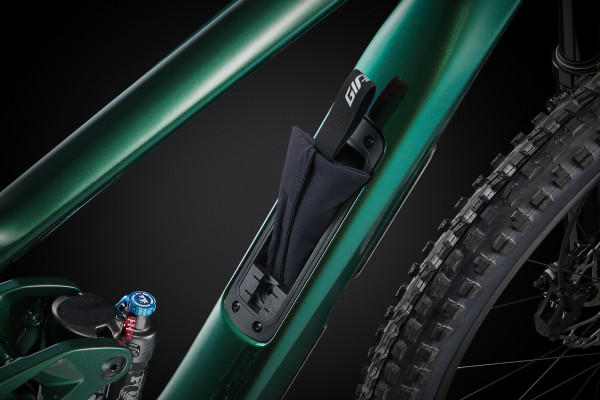

New integrated frame storage inside the down tube makes it easy to carry tools, snacks and other essentials. Mounts below the top tube offer an additional option for storage.

A massive down tube and oversized top tube work in unison to provide superior front end lateral and torsional stiffness. The precisely engineered, rectangular shaped down tube yields unprecedented steering precision and pedaling performance.

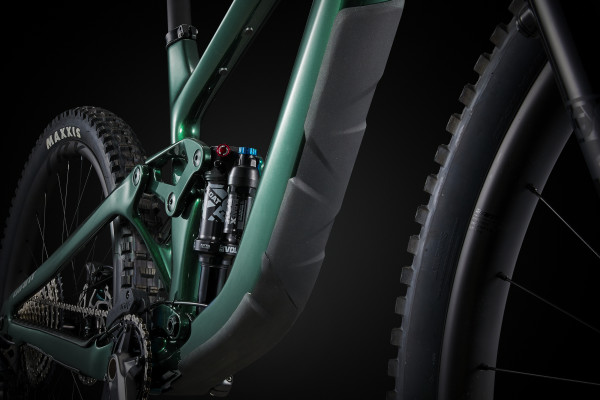

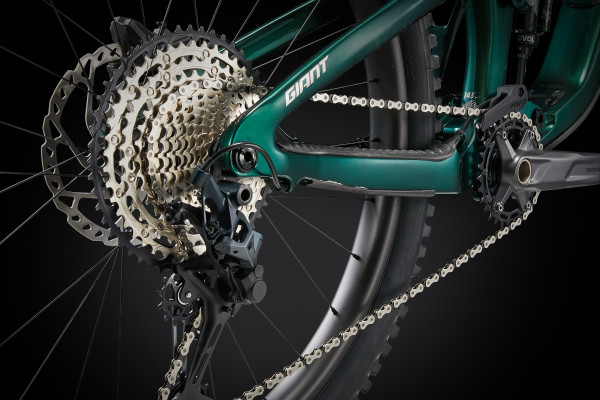

The driveside chainstay and down tube feature built-in protection against rocks and debris. A clear 3M protective strip on the underside of the head tube/down tube junction protects the frame when it’s loaded onto a shuttle vehicle.

Wider hub spacing (110mm front/148mm rear) results in stiffer wheels for added control plus more tire clearance and an improved chainline for optimal drivetrain performance.

Integrated Tubeless WheelSystem and tires deliver improved efficiency, comfort and control in the most user-friendly and reliable system.
